KLV Window

The KLV window displays STANAG MISB metadata embedded in video streams. The main standard is:

  • MISB 0601 – UAS Datalink Local Set

Nested standards may also be present:

  • MISB 0102 – Security Metadata Local Set
  • MISB 0806 – Remote Video Terminal (RVT)
  • MISB 0903 – Video Moving Target Indicator and Track Metadata
  • MISB 1204 – Motion Imagery Identification System (MIIS)
  • MISB 1601 – Geo-Registration Local Set

These standards define metadata fields such as geolocation, platform info, security, and tracking data.

To display this information, press the Stream Detection button.

Klv button

KLV window toolbar

KlvWindow toolbar

KLV Window Toolbar Functions

  • Pause/Resume: Pauses or resumes metadata presentation.
  • Download Packet: Downloads the current metadata packet in JSON format.
  • Tags/Detailed Info Switch: Selects between brief (standards/tags) and detailed (human-readable) views.
  • Local/UTC Switch: Changes timestamp display between local time and UTC.

Use these controls to customize metadata viewing and exporting.

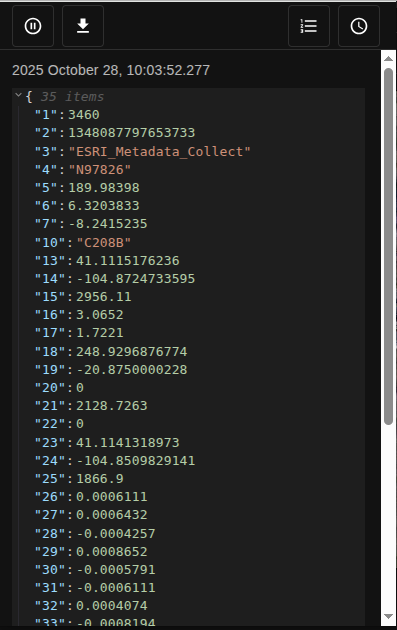

KLV window (brief)

KlvWindow

This mode displays metadata tags (keys) as specified in the MISB standards.

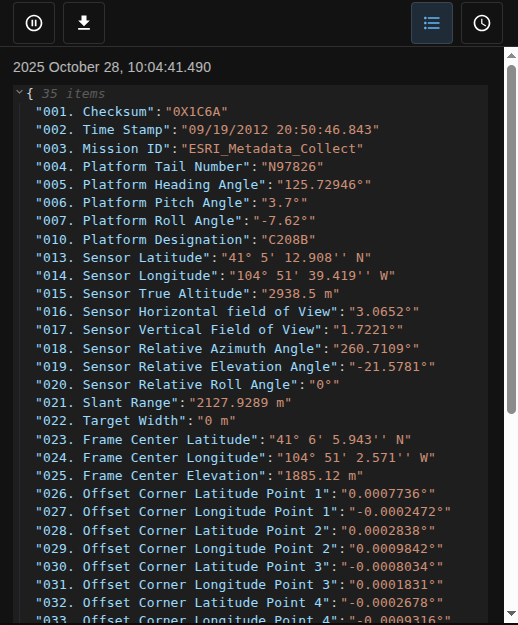

KLV window (detailed)

KlvWindow

This mode adds tag descriptions and displays the values in a more human-friendly format.
