MCP Server

STView includes a companion Model Context Protocol (MCP) server named stview_mcp. It lets LLM applications control STView with model-callable tools, then read playback status, recording state, KLV metadata, object detection state, and other session statistics back from the application.

Typical clients include Claude Desktop, Claude Code, Codex-style clients, Ollama-compatible MCP hosts, and ChatGPT integrations that can reach a Streamable HTTP MCP endpoint.

From the user's point of view, the flow is simple: the LLM app calls MCP tools, stview_mcp sends those requests to the running STView application, and STView returns status and statistics. Internally, stview_mcp uses STView's existing Local Automation API, so MCP, scripts, and test tools share the same automation behavior.

MCP control flow

Requirements

Before connecting an LLM app:

Start STView and keep the main window open.
Open Settings > Options > Application.
Turn on Allow automation.
Generate or copy the automation token.
Confirm stview_mcp is next to the STView executable in the app install or build output directory.

Packaged STView may start its local backend on a dynamic loopback port. The application writes the active backend URL to its runtime descriptor, and stview_mcp discovers that URL automatically by default.

Use -backend only when you intentionally run a backend at a fixed address, such as a development backend:

http://127.0.0.1:47792

The MCP server needs the same bearer token used by the Local Automation API. The token can be passed with -token or through STVIEW_MCP_AUTOMATION_TOKEN.

What LLMs Can Control

Once connected, an LLM can use MCP tools to:

Open local files, file:// URIs, and supported stream URIs.
Start, stop, pause, resume, seek, step frames, and change playback speed.
Resize the STView window and open or close the Map, KLV, Options, and Session windows.
Start and stop recordings in MPEG-TS, MP4, or HLS formats.
Export cut clips in MPEG-TS, MP4, PCAP, or PCAPNG formats.
Save snapshots from the current video frame.
List, create, update, and delete persisted bookmarks and bookmark tags.
Configure KLV PID selection and object detection settings.
Read status, session, KLV, object detection, and recording statistics.

Local Stdio Mode

Use stdio mode when the LLM app runs on the same machine as STView. This is the recommended local setup because the MCP client launches stview_mcp as a child process and no additional listening port is needed.

Example command:

stview_mcp -token <token>

Example Claude Desktop-style configuration:

{
  "mcpServers": {
    "stview": {
      "command": "C:/Program Files/ImpleoTV/STView/stview_mcp.exe",
      "args": [
        "-token",
        "<token>"
      ]
    }
  }
}

On macOS or Linux, use the installed stview_mcp path for your package. In a local build tree, use the copy staged next to the STView executable.

If you run stview_backend yourself at a fixed address, pass that address as an override:

stview_mcp -backend http://127.0.0.1:47792 -token <token>

Streamable HTTP Mode

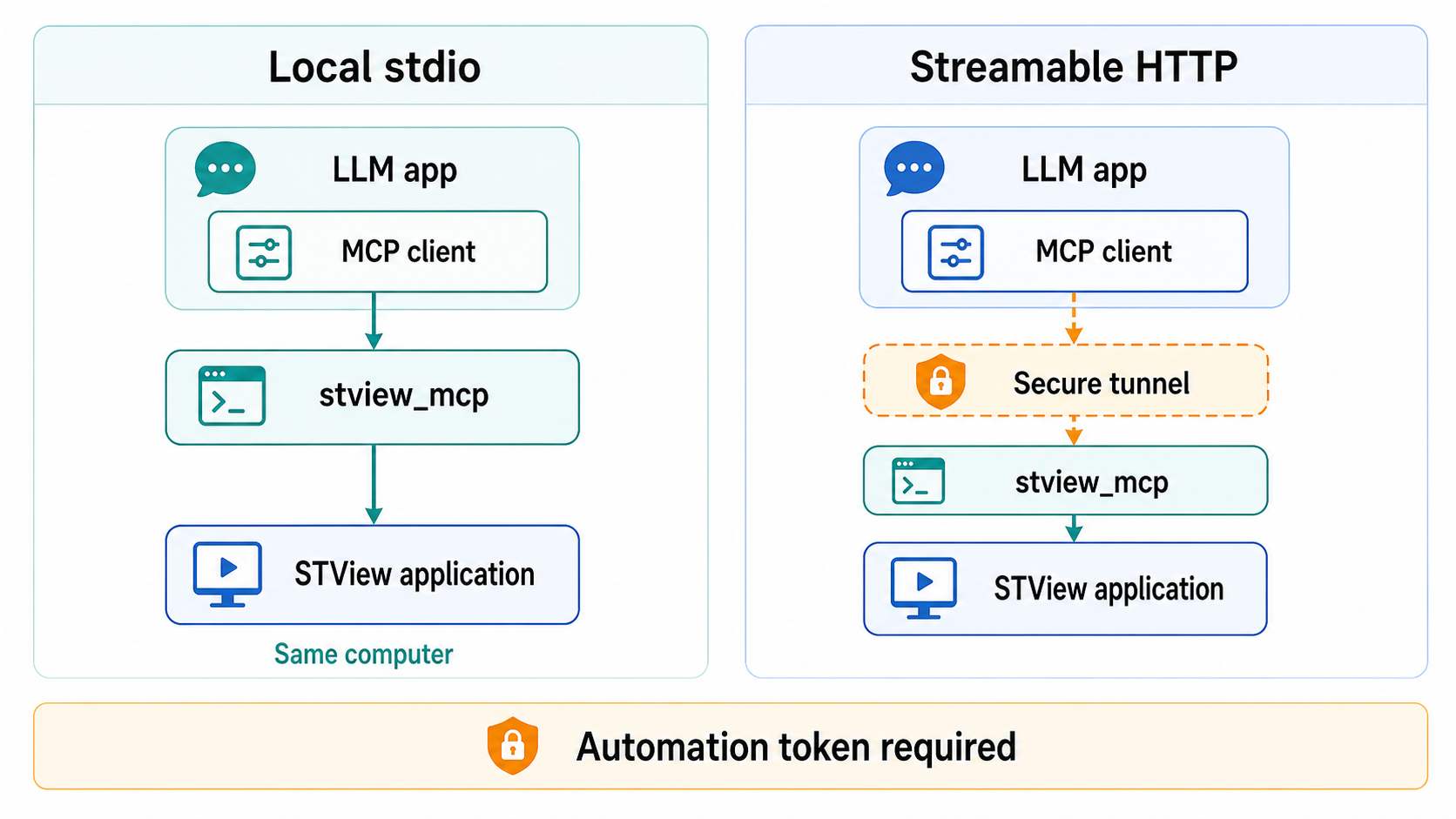

MCP connection modes

Use Streamable HTTP mode when the LLM app expects a URL. Start stview_mcp with -http:

stview_mcp \
  -token <token> \
  -http 127.0.0.1:47892

Add -backend http://127.0.0.1:47792 only for a fixed-address development backend. Normal packaged-app use should rely on automatic discovery.

The MCP endpoint is:

http://127.0.0.1:47892

HTTP mode requires:

Authorization: Bearer <token>

stview_mcp binds only to loopback addresses in HTTP mode. For ChatGPT or API clients that need a remote MCP URL, expose the local MCP endpoint through a secure tunnel that you control. Do not expose STView's local ports directly to the public internet.

Tools

The MCP server exposes model-callable tools with structured JSON results. Most control tools return ok, state, commandId, data, error, and completedAt, so the LLM can verify what happened before deciding on a next step.

Tool	Parameters	Purpose
`stview_status`	none	Return current playback status.
`stview_open_media`	`uri`, optional `lowLatency`, `loop`	Open and start a file, `file://` URI, or stream URI.
`stview_start`	none	Start current media.
`stview_stop`	none	Stop playback.
`stview_pause`	none	Pause playback.
`stview_resume`	none	Resume playback.
`stview_toggle_pause`	none	Toggle pause/resume.
`stview_seek`	`positionSeconds`	Seek to an absolute position.
`stview_step_frame`	`direction`	Step one frame `backward` or `forward`.
`stview_set_playback_rate`	`playbackRate`	Set playback rate from `-32` to `32`.
`stview_set_audio_volume`	`audioVolume`	Set audio volume from `0` to `1`.
`stview_resize_window`	`width`, `height`	Resize the main application window.
`stview_show_window`	`window`	Open `options`, `klv`, `map`, or `session`.
`stview_close_window`	`window`	Close `options`, `klv`, `map`, or `session`.
`stview_start_recording`	recording parameters	Start recording.
`stview_stop_recording`	none	Stop active recordings.
`stview_check_recording_output`	recording parameters	Check whether the output already exists.
`stview_save_snapshot`	snapshot parameters	Save the current frame.
`stview_check_clip_export_output`	`outputPath`	Check whether a clip export output already exists.
`stview_export_clip`	clip export parameters	Export a cut clip.
`stview_get_state`	`resource`	Read cached state or statistics.
`stview_set_klv_pid`	`pid`, optional `target`	Set the KLV PID for `klv` or `session`.
`stview_set_object_detection`	detection options	Merge object-detection options into settings.
`stview_list_bookmarks`	optional `assetId`, `sourcePath`, `sourceUriOrPath`	List persisted bookmarks.
`stview_create_bookmark`	bookmark fields	Create a persisted bookmark.
`stview_update_bookmark`	bookmark fields with `id`	Update a persisted bookmark and replace its tag assignments.
`stview_delete_bookmark`	`id`	Delete a persisted bookmark.
`stview_list_tags`	none	List persisted bookmark tags.
`stview_create_tag`	`text`, optional `color`	Create or return a persisted bookmark tag.
`stview_update_tag`	`id`, `text`, optional `color`	Update a persisted bookmark tag.
`stview_delete_tag`	`id`	Delete a persisted bookmark tag.

Supported media URI schemes are the same as the Local Automation API: local paths, file://, udp://, rtsp://, http://, https://, and srt://. The MCP server does not browse the filesystem. Give it the path or URI that should be opened.

Recording

stview_start_recording accepts the same recorder payload as the Open Stream dialog and Local Automation API.

Supported recording formats:

`mode`	Output
`mpegts`	MPEG-TS recording, continuous or segmented.
`mp4`	MP4 recording, continuous or segmented.
`hls`	HLS playlist with segmented media.

For HLS, hlsSegmentFormat can be mpegts or mp4.

Example MPEG-TS recording:

{
  "mode": "mpegts",
  "outputDirectory": "D:/Recordings",
  "baseName": "mission-001",
  "segmentDurationMs": 0,
  "videoPassthrough": true,
  "overwrite": false
}

Example HLS recording:

{
  "mode": "hls",
  "outputDirectory": "D:/Recordings",
  "baseName": "mission-hls",
  "hlsSegmentFormat": "mp4",
  "segmentDurationMs": 2000,
  "videoPassthrough": true,
  "overwrite": true
}

Use stview_check_recording_output with the same fields before starting a recording when you need to know whether an output file, segment, or playlist already exists.

Clip Export

stview_export_clip exports a cut range from a source into mpegts, mp4, pcap, or pcapng. Pass startSeconds and endSeconds for the selected range, or use startOffsetNs and endOffsetNs when you already have native nanosecond offsets.

Example MPEG-TS cut export:

{
  "sourceUriOrPath": "file:///D:/Media/source.ts",
  "format": "mpegts",
  "outputPath": "D:/Exports/source-cut.ts",
  "startSeconds": 12.5,
  "endSeconds": 42,
  "overwrite": false
}

For PCAP/PCAPNG exports, set pcapAllTraffic to false and provide pcapStreamIds to export selected streams only. Use stview_check_clip_export_output with outputPath before exporting when you need an explicit overwrite decision.

Bookmarks And Tags

Bookmark and tag tools operate on STView's persisted app database. They do not control playback directly, so their result data is returned immediately from the backend instead of through an asynchronous command queue.

List all bookmarks for an asset:

{
  "assetId": 42
}

Create a bookmark:

{
  "assetId": 42,
  "positionSeconds": 12.5,
  "normalizedTimeNs": 12500000000,
  "label": "Vehicle enters frame",
  "note": "Review with metadata overlay enabled",
  "color": "#ffcc00",
  "tags": [
    {
      "text": "review",
      "color": "#ffcc00"
    }
  ]
}

If assetId is not known, pass sourcePath or sourceUriOrPath and STView will resolve the matching imported asset. positionSeconds and normalizedTimeNs are both accepted; when one is omitted, STView derives it from the other. thumbnail, when supplied, uses the same base64 JSON encoding as the app database API and can be paired with thumbnailMime.

Update a bookmark by passing its id with the fields to keep:

{
  "id": 17,
  "assetId": 42,
  "positionSeconds": 14.0,
  "label": "Updated note",
  "tags": [
    {
      "text": "urgent",
      "color": "#ff6633"
    }
  ]
}

Updating a bookmark replaces its tag assignments with the supplied tags array. Delete a bookmark with:

{
  "id": 17
}

Create or update a tag:

{
  "text": "urgent",
  "color": "#ff6633"
}

{
  "id": 3,
  "text": "needs export",
  "color": "#00aaff"
}

Deleting a tag removes that tag and its bookmark assignments. It does not delete the bookmarks themselves.

Application Windows And State

Open the map window:

{
  "window": "map"
}

Open the KLV metadata window:

{
  "window": "klv"
}

Resize the main window:

{
  "width": 1280,
  "height": 720
}

Read state with stview_get_state:

{
  "resource": "session"
}

State resources are:

status
session
klv
objectDetection
recording

STView publishes these state snapshots while automation is enabled. Responses include updatedAt, ageMs, and stale. A stale response means STView has not published a fresh snapshot recently.

Resources

MCP clients can also read these resources:

stview://status
stview://session
stview://klv
stview://object-detection
stview://recording
stview://capabilities

Resources are useful when an LLM wants context without performing a control action.

KLV packet representation

The klv state resource exposes KLV window state under window, including its selected feed, paused, jsonMode, and the decoded, tag-number-keyed packet in window.packet.briefJsonText. Existing top-level PID and statistics fields continue to describe the Session view. The KLV window’s Brief/Detailed choice affects its presentation only; it does not change the packet supplied to MCP clients. The former detailedJsonText packet field is no longer emitted.

Security Model

Automation and MCP are opt-in. When Allow automation is off, queued commands, results, and cached state are cleared, and MCP tools are rejected.

Keep these rules in mind:

Treat the automation token like a password.
Rotate the token if it was copied into a client you no longer trust.
Prefer stdio mode for local desktop LLM apps.
Keep Streamable HTTP bound to 127.0.0.1.
Use a secure tunnel for remote MCP clients instead of opening STView ports to the network.
Do not ask an LLM to open arbitrary paths unless you are comfortable with the file being accessed by STView.

Troubleshooting

automation is disabled means Allow automation is off, or an environment override disabled it.

automation token is required means stview_mcp was launched without -token or STVIEW_MCP_AUTOMATION_TOKEN.

invalid bearer token in HTTP mode means the MCP client did not send the same token to stview_mcp.

invalid automation token from a tool means STView's automation token was rotated after the MCP host configuration was written. Copy the new token from STView settings and update the MCP host configuration, or pass the new token with STVIEW_MCP_AUTOMATION_TOKEN.

automation request failed: connection refused usually means STView is not running, or stview_mcp was forced to a stale -backend URL. Remove the -backend argument for normal packaged-app use so stview_mcp can discover the active dynamic port.

automation state snapshot is not available means STView has not published state yet. Keep STView open and wait a moment after enabling automation.

A tool result with state: "queued" means the command did not complete before the MCP server's wait timeout. STView may still complete it if the main window is running and automation remains enabled.

If a command never completes, confirm that STView is running, the main window is open, and any explicit backend URL points to the same STView instance.

Output telemetry in status

The existing status resource includes recastTargets and recorderOutputs arrays. Each entry contains id, source (original or flywheel), destination, state, bitrateBps (number or null when unavailable), sizeBytes, currentError, lastError, and lastErrorAt (Unix milliseconds, zero if no error). States are connecting, waiting, active, disconnected, and error; successfully stopped outputs are omitted. Failed start attempts may use the ID attempt. The UI alone adds transient starting/connecting feedback while a native start request is pending.

The existing scalar fields remain available. recastLastError continues to represent the current output error and clears on recovery, while each array entry's lastError retains the previous error and original occurrence time. No new automation action or authentication behavior is introduced. Output addresses and errors in these arrays redact URI credentials and query strings.
