Local Automation API

STView includes an opt-in local REST automation API for scripts, test tools, and agent workflows. Automation is disabled by default. When disabled, control requests return 403 and any queued automation commands or cached automation state snapshots are cleared.

LLM clients should usually connect through STView's MCP companion server, which wraps this API as model-callable MCP tools. See MCP Server.

Enable automation from:

Settings > Options > Application > Allow automation

The default backend base URL is:

http://127.0.0.1:47792

Packaged STView may choose a dynamic loopback port when it starts. For scripts that need to attach to the currently running app, read runtime.json from the STView config directory and use its backendUrl value. The MCP companion does this automatically.

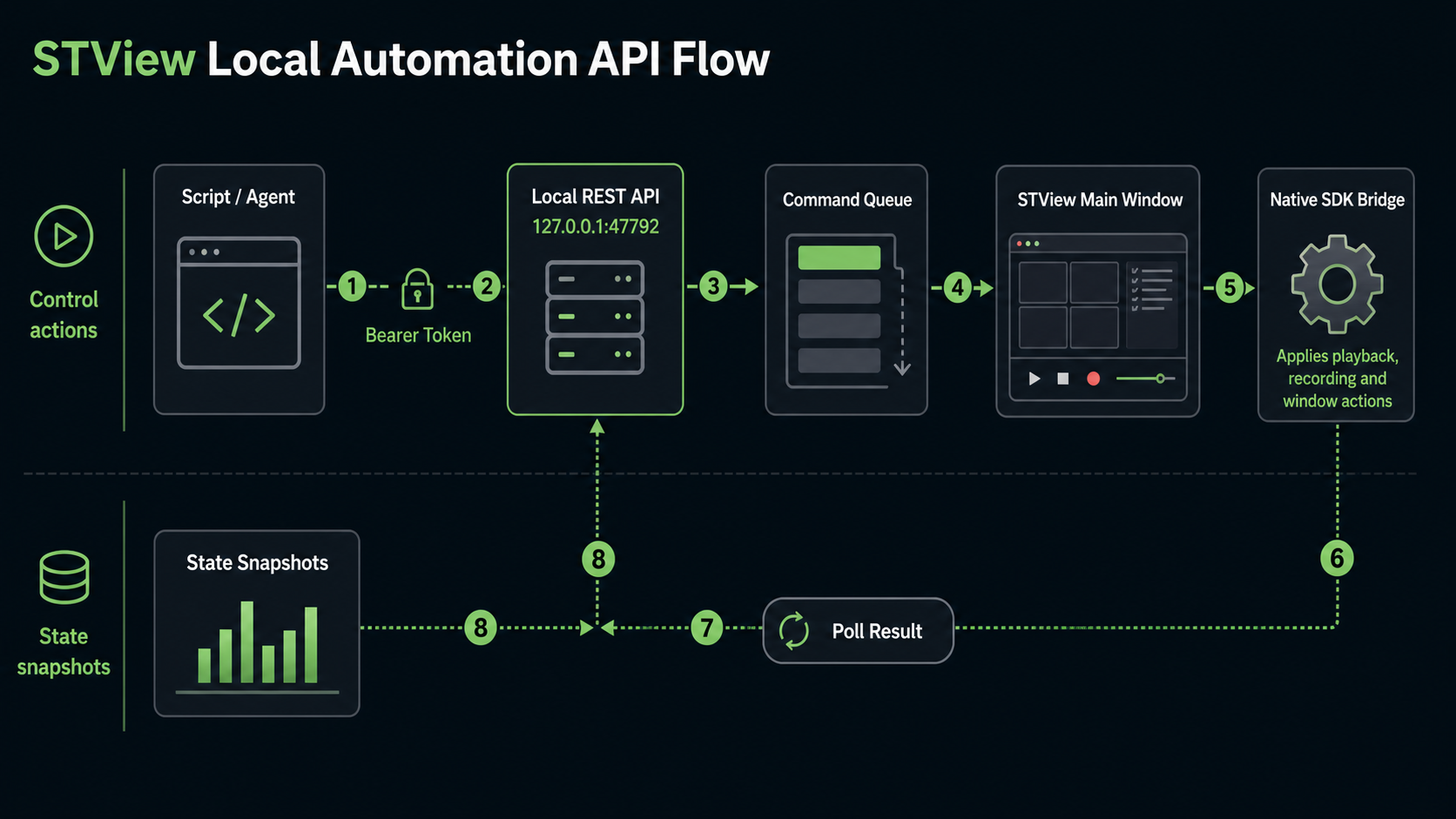

Local automation API flow

Discovery

Use the unauthenticated discovery endpoint to check whether automation is enabled and to find the v1 base path:

curl -sS http://127.0.0.1:47792/api/automation

Example response:

{
  "ok": true,
  "enabled": true,
  "v1BaseUrl": "/api/automation/v1",
  "actions": ["open", "start", "stop", "pause", "resume", "togglePause", "seek"]
}

For the full action and state-resource list, call the v1 capabilities endpoint with a bearer token:

curl -sS http://127.0.0.1:47792/api/automation/v1/capabilities \
  -H "authorization: Bearer <token>"

Authentication

All /api/automation/v1/* endpoints require:

Authorization: Bearer <token>

Generate or rotate the token from Settings > Options > Application. The UI shows the full token only when it is newly generated, so copy it then and store it in your script environment. Regenerating the token invalidates the previous one.

The token is stored by STView as a hash, not as plain text. If you lose the token, regenerate it.

Sending Actions

Actions are submitted with:

POST /api/automation/v1/actions

The request body always includes action. Some actions also accept top-level parameters, and all parameterized actions can accept a params object.

Example seek request:

curl -sS -X POST http://127.0.0.1:47792/api/automation/v1/actions \
  -H "authorization: Bearer <token>" \
  -H "content-type: application/json" \
  -d '{"action":"seek","positionSeconds":12.5}'

Most successful submissions return 202 because commands are asynchronous:

{
  "ok": true,
  "commandId": 42,
  "state": "queued"
}

Poll the command until it completes:

curl -sS http://127.0.0.1:47792/api/automation/v1/actions/42 \
  -H "authorization: Bearer <token>"

Completed response:

{
  "ok": true,
  "commandId": 42,
  "state": "completed",
  "result": {
    "running": true,
    "paused": false
  },
  "completedAt": "2026-06-24T12:00:00Z"
}

Failed response:

{
  "ok": false,
  "commandId": 42,
  "state": "failed",
  "error": "positionSeconds must be greater than or equal to 0",
  "completedAt": "2026-06-24T12:00:00Z"
}

If you want the initial request to wait briefly for completion, include waitMs. STView caps this wait at 30 seconds. If the command finishes within that window, the endpoint returns 200 with the final result; otherwise it returns 202 and the command should be polled normally.

curl -sS -X POST http://127.0.0.1:47792/api/automation/v1/actions \
  -H "authorization: Bearer <token>" \
  -H "content-type: application/json" \
  -d '{"action":"status","waitMs":2000}'

Action Reference

Action	Parameters	Description
`open`	`uri`, optional `lowLatency`, `playbackCacheMs`, `loop`	Opens and starts a file or stream. `url` is accepted as an alias for `uri`. `playbackCacheMs` accepts `0` through `5000` and is ignored when low latency is enabled.
`playMission`	`missionId` or `name`	Opens and starts a persisted mission. Supply a positive mission ID or a non-empty name.
`start`	none	Starts the current media.
`stop`	none	Stops playback.
`pause`	none	Pauses playback.
`resume`	none	Resumes playback.
`togglePause`	none	Toggles pause/resume.
`seek`	`positionSeconds`	Seeks to an absolute playback position in seconds.
`stepBackward`	none	Uses the toolbar's native frame step backward, including presentation-aligned metadata.
`stepForward`	none	Uses the toolbar's native frame step forward, including presentation-aligned metadata.
`setPlaybackRate`	`playbackRate`	Sets playback rate from `-32` to `32`.
`setAudioVolume`	`audioVolume`	Sets audio volume from `0` to `1`.
`startRecording`	`params`	Starts recording with the same recording payload used by STView's recorder.
`stopRecording`	none	Stops active recordings.
`checkRecordingOutput`	`params`	Checks whether the requested recording output already exists.
`startRecast`	`params`	Starts a UDP, SRT, WHIP, or LL-HLS Recast output from the Original or Flywheel source.
`stopRecast`	none	Stops the active Recast output.
`snapshot`	`params`	Exports the current video frame with the supplied snapshot parameters.
`checkClipExportOutput`	`params`	Checks whether the requested clip export output already exists.
`exportClip`	`params`	Exports a cut clip with the supplied source, range, and output parameters.
`showWindow`	`window`	Shows an auxiliary window.
`closeWindow`	`window`	Closes an auxiliary window.
`toggleFullscreen`	none	Toggles fullscreen for the main window.
`setWindowSize`	`width`, `height`	Sets the main window client size.
`setSessionKlvPid`	`pid`	Sets the active KLV PID for the Session view.
`setKlvPid`	`pid`	Sets the active KLV PID for the KLV window.
`setKlvPaused`	`paused`	Pauses or resumes KLV window updates.
`setKlvDetailed`	`detailed`	Toggles the KLV window’s Detailed presentation; the tagged packet is unchanged.
`setOptions`	`params`	Applies app options by merging `params` into the current options layout.
`refreshLicenseUnlock`	none	Refreshes SDK license unlock state.
`setObjectDetection`	`params`	Applies object-detection options by merging `params` into the current object-detection layout.
`status`	none	Returns current playback status.

Supported window names are options, klv, map, scene, and session. Some aliases are accepted, such as settings for options, metadata for klv, and stats or statistics for session.

Supported action aliases include play for start, load for open, record for startRecording, save-snapshot for snapshot, cut for exportClip, and resize for setWindowSize. Use the canonical action names in new scripts.

Examples

Open a local file:

curl -sS -X POST http://127.0.0.1:47792/api/automation/v1/actions \
  -H "authorization: Bearer <token>" \
  -H "content-type: application/json" \
  -d '{"action":"open","uri":"file:///D:/Media/sample.ts"}'

Open a stream with low latency enabled:

curl -sS -X POST http://127.0.0.1:47792/api/automation/v1/actions \
  -H "authorization: Bearer <token>" \
  -H "content-type: application/json" \
  -d '{"action":"open","uri":"udp://239.1.1.1:5000","lowLatency":true}'

Open a stream with a 400 ms playback cache:

curl -sS -X POST http://127.0.0.1:47792/api/automation/v1/actions \
  -H "authorization: Bearer <token>" \
  -H "content-type: application/json" \
  -d '{"action":"open","uri":"udp://239.1.1.1:5000","lowLatency":false,"playbackCacheMs":400}'

Play a saved mission by ID:

curl -sS -X POST http://127.0.0.1:47792/api/automation/v1/actions \
  -H "authorization: Bearer <token>" \
  -H "content-type: application/json" \
  -d '{"action":"playMission","missionId":42}'

Show the map window:

curl -sS -X POST http://127.0.0.1:47792/api/automation/v1/actions \
  -H "authorization: Bearer <token>" \
  -H "content-type: application/json" \
  -d '{"action":"showWindow","window":"map"}'

Set the main window size:

curl -sS -X POST http://127.0.0.1:47792/api/automation/v1/actions \
  -H "authorization: Bearer <token>" \
  -H "content-type: application/json" \
  -d '{"action":"setWindowSize","width":1280,"height":720}'

Export a snapshot:

curl -sS -X POST http://127.0.0.1:47792/api/automation/v1/actions \
  -H "authorization: Bearer <token>" \
  -H "content-type: application/json" \
  -d '{
    "action": "snapshot",
    "params": {
      "format": "jpeg",
      "outputPath": "D:/Captures/frame.jpg",
      "overwrite": true
    }
  }'

Export a cut clip:

curl -sS -X POST http://127.0.0.1:47792/api/automation/v1/actions \
  -H "authorization: Bearer <token>" \
  -H "content-type: application/json" \
  -d '{
    "action": "exportClip",
    "params": {
      "sourceUriOrPath": "file:///D:/Media/source.ts",
      "format": "mpegts",
      "outputPath": "D:/Exports/source-cut.ts",
      "startSeconds": 12.5,
      "endSeconds": 42,
      "overwrite": false
    }
  }'

Enable object detection with a model:

curl -sS -X POST http://127.0.0.1:47792/api/automation/v1/actions \
  -H "authorization: Bearer <token>" \
  -H "content-type: application/json" \
  -d '{
    "action": "setObjectDetection",
    "params": {
      "enabled": true,
      "modelPath": "D:/Models/yolo.onnx",
      "provider": "auto",
      "inputWidth": 960,
      "inputHeight": 960,
      "maxFps": 10
    }
  }'

Start recording:

curl -sS -X POST http://127.0.0.1:47792/api/automation/v1/actions \
  -H "authorization: Bearer <token>" \
  -H "content-type: application/json" \
  -d '{
    "action": "startRecording",
    "params": {
      "mode": "mpegts",
      "outputDirectory": "D:/Recordings",
      "baseName": "mission-001",
      "segmentDurationMs": 0,
      "hlsSegmentFormat": "mpegts",
      "videoPassthrough": true,
      "videoCodec": "h264",
      "videoBitrateKbps": 6000,
      "videoKeyframeInterval": 60
    }
  }'

Start an Original-source UDP Recast output:

curl -sS -X POST http://127.0.0.1:47792/api/automation/v1/actions \
  -H "authorization: Bearer <token>" \
  -H "content-type: application/json" \
  -d '{
    "action": "startRecast",
    "params": {
      "source": "original",
      "targetProtocol": "udp",
      "targetUri": "udp://239.1.1.2:5000"
    }
  }'

For LL-HLS, use targetProtocol: "llhls". Set hlsPlaybackUrl, for example http://127.0.0.1:56700/live/camera1/index.m3u8, for a stable hosted URL. targetUri is also accepted when hlsPlaybackUrl is empty. Omit both for an automatic URL. The URL sets the advertised host, fixed port and stream path; hlsBindAddress still selects the local listener interface. Optional fields are hlsSegmentFormat (mpegts or mp4), hlsBindAddress (default 127.0.0.1), hlsAdvertisedHost, hlsPort (default 0), hlsSegmentDurationMs (default 2000), hlsPartDurationMs (default 200), hlsWindowSegments (default 15), hlsTlsCertificatePath, and hlsTlsKeyPath. A wildcard bind address requires an advertised host; TLS requires both file paths. Segment duration must be at least three times the part duration. Start completion reports recastTargetUri as the playback URL, recastHlsFormat as the selected format and recastMetadataUri for CMAF's KLV sidecar. These values are also available through Recast status.

Stop Recast with {"action":"stopRecast"}. Flywheel and WHIP parameters follow the same fields described for stview_start_recast in MCP Server.

State Resources

STView publishes cached automation state while automation is enabled and the main window is running. Read all available resources:

curl -sS http://127.0.0.1:47792/api/automation/v1/state \
  -H "authorization: Bearer <token>"

Read a single resource:

curl -sS http://127.0.0.1:47792/api/automation/v1/state/status \
  -H "authorization: Bearer <token>"

Resources are:

status
session
klv
objectDetection
recording

Each response includes updatedAt, ageMs, and stale. A snapshot is marked stale when it is older than 5 seconds. If no snapshot is available yet, the state endpoint returns 503.

The session resource's stored ingest summaries refresh in the background. They may lag its live playback and ingest-progress fields briefly; updatedAt describes publication of the overall snapshot, not completion of a database query.

Example single-resource response:

{
  "ok": true,
  "resource": "status",
  "updatedAt": "2026-06-24T12:00:00Z",
  "ageMs": 245,
  "stale": false,
  "data": {
    "running": true,
    "paused": false
  }
}

KLV presentation

setKlvDetailed changes the KLV window’s jsonMode (brief or detailed). The klv state resource exposes that window state under window, including selectedOrigin, selectedPid, paused, jsonMode, and packet. Existing top-level KLV PID and statistics fields continue to describe the Session view. The frontend derives descriptive labels from the packet’s briefJsonText using the bundled libmisb converter. Packets no longer include detailedJsonText; clients should consume briefJsonText regardless of the window’s mode. Switching modes works on the frozen packet while paused is true and does not request another decode. Downloads continue to use Brief JSON.

Execution Model

Automation commands are queued by the local backend and consumed by the running STView application. The backend does not directly mutate live playback state. STView polls queued commands, applies them, and reports completion or failure back to the backend.

This split matters operationally:

STView must be running with the main window alive for commands to complete.
A queued command may remain queued until the main window consumes it.
Commands and results expire after about 10 minutes.
The backend keeps at most 200 queued commands.
Disabling automation clears queued commands, results, and cached state.

Security and CORS

The automation API is intended for local use. Keep the backend bound to loopback and do not share the bearer token. CORS is limited to same-host loopback origins and configured development origins. Additional allowed origins can be supplied through STVIEW_BACKEND_CORS_ORIGINS.

Automation can also be controlled by environment in managed setups:

STVIEW_APP_ALLOW_AUTOMATION can force automation on or off.
STVIEW_APP_AUTOMATION_TOKEN can provide the token value to hash and use.

Common Errors

403 automation is disabled means Allow automation is off or an environment override disabled it.

403 automation token is not configured means automation is enabled but no token has been generated or provided.

401 invalid automation token means the bearer token is missing or does not match the configured token hash.

400 unsupported automation action means the action value is not recognized.

400 positionSeconds is required for seek means the seek action needs a numeric positionSeconds value.

503 automation state snapshot is not available means the main window has not published a state snapshot yet, or automation was just enabled and the first snapshot is still pending.

Output telemetry in status

The existing status resource includes recastTargets and recorderOutputs arrays. Each entry contains id, source (original or flywheel), destination, state, bitrateBps (number or null when unavailable), sizeBytes, currentError, lastError, and lastErrorAt (Unix milliseconds, zero if no error). States are connecting, waiting, active, disconnected, and error; successfully stopped outputs are omitted. Failed start attempts may use the ID attempt. The UI alone adds transient starting/connecting feedback while a native start request is pending.

The existing scalar fields remain available. recastLastError continues to represent the current output error and clears on recovery, while each array entry's lastError retains the previous error and original occurrence time. No new automation action or authentication behavior is introduced. Output addresses and errors in these arrays redact URI credentials and query strings.

Pattern source KLV

Existing source actions accept Pattern URLs with klv_enabled (0/1), klv_pid, klv_type (0 ASYNC / 1 SYNC), klv_every_frame (0/1), klv_diagnostics (0/1), klv_rate (Hz), klv_revision (1–19), and klv_template (URL-encoded JSON including tag 65). The revision must match template tag 65. Missing settings preserve video-only behavior. Rate is used only when generation is enabled and every-frame mode is off; it must be 1–60 Hz and no higher than video FPS. PID 257 is reserved for video. Diagnostics default to off and require ST 0601 revision 13 through 19 when KLV is enabled. They add frame timing, dimensions, and exact FPS; see the Pattern guide for mappings and outgoing-only template overrides. time=1 shows elapsed and absolute UTC time independently of diagnostics. The native SDK validates the MISB template before starting generation.

Commands retain the existing asynchronous execution path and error reporting. Pattern recordings accept MP4 or H.264/H.265 MPEG-TS; only MPEG-TS carries KLV. See Pattern sources for defaults and timing behavior.

3D window

The existing showWindow and closeWindow actions also accept scene (alias 3d) for the detached 3D presentation. This uses the same queued main-view executor as the other windows.
