Source configuration

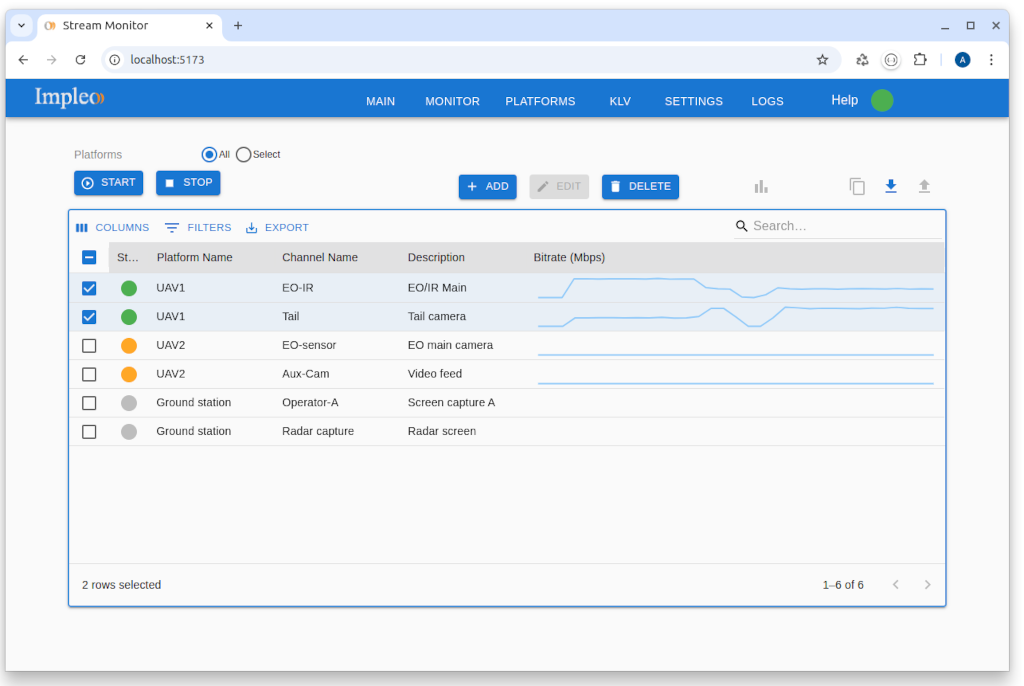

Stream monitor

To begin monitoring channels in StreamMonitor, follow these configuration steps:

Add a New Channel

Start by selecting the option to add a new channel within StreamMonitor. This initiates the channel setup process.

Channel creation

Set General Information

Enter basic details for the channel, including:

Name: Provide a unique, descriptive name for easy identification.
Description: Optionally, add a brief description to clarify the channel’s purpose or content.

Select a Platform (if applicable) Choose the platform to which this channel will belong. Platforms help organize and logically group channels, improving manageability.

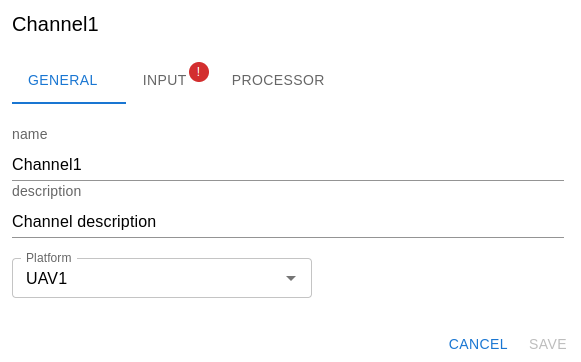

Channel config general

Configure the Input Source

Define the input source for the channel

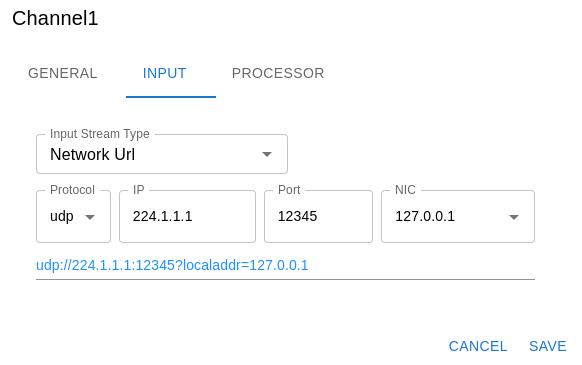

Channel config input

IP Address: Enter the IP address of the video stream source.
Port: Specify the port number used for streaming.
Network Interface: Select the network interface that will connect to the source.
