Stream Recorder SDK (.Net)  Version 1.0.17
H.264 GOP Aligned Segmentation.

As mentioned above, the SDK provides segmented recording functionality. In order to achieve a seamless switching between random (non consecutive) segments, the cutting point should be at GOP (Group Of Pictures) boundaries, as shown below:

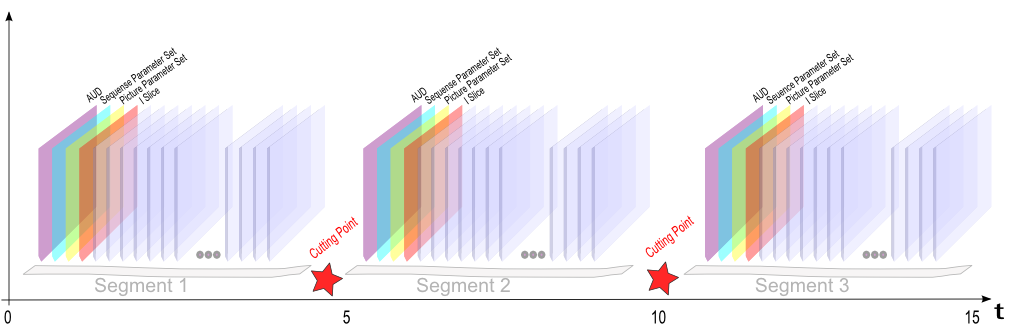

Figure 1. H.264 GOP Aligned Segmentation.


Note
This functionality is provided only for MPEG TS streams with H.264 payload.
