Map

The Map page explains the detached map window available from the Player page for recorded-file playback.

Use it when you want to inspect matched KLV position data geographically instead of only reading coordinates in the KLV windows.

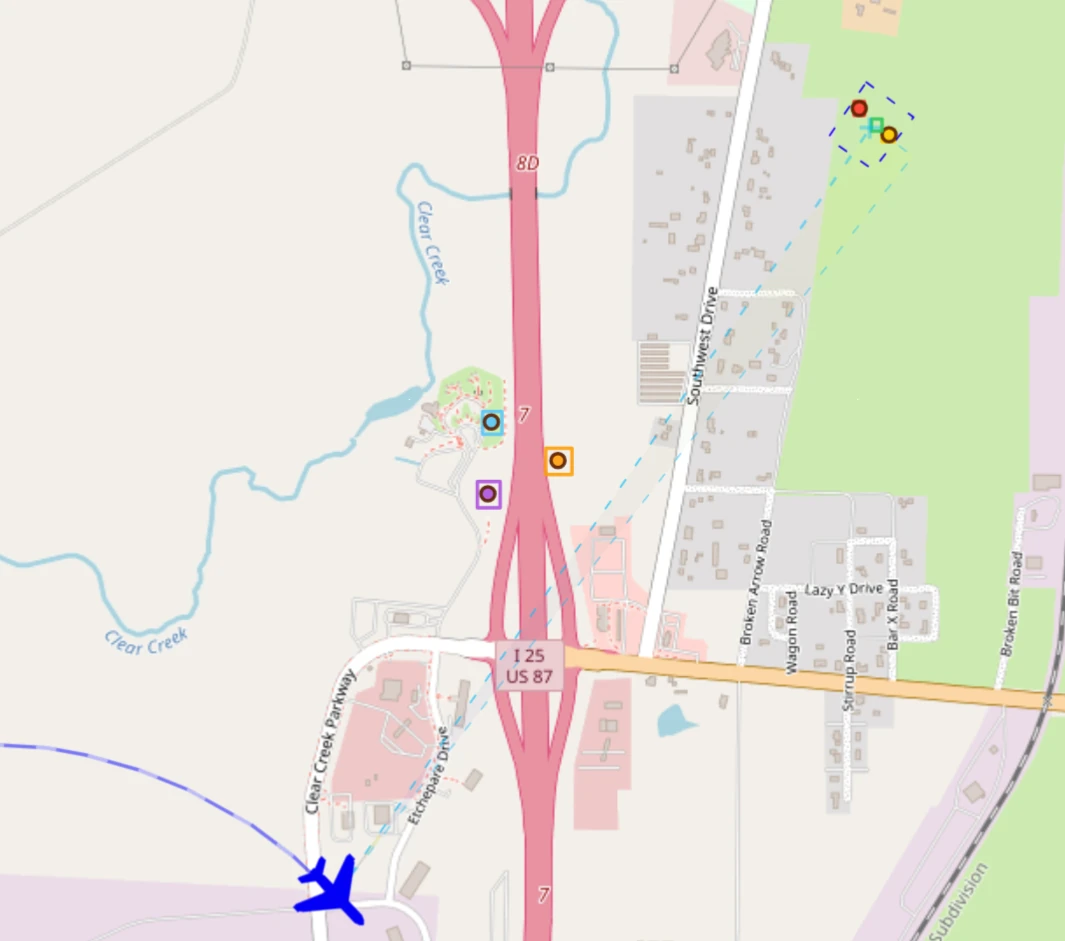

Map Window

What The Map Presents​

The Map window plots the current matched KLV packet on a geospatial map.

When usable latitude and longitude fields are present, StInspector can show:

  • the current platform position for the matched packet
  • a shared interactive marker that can be moved either from the map window or from the Player overlay
  • the platform heading when heading metadata is available
  • VMTI targets
  • optional filmed-area and sensor-path overlays
  • frame-center heatmap data when it exists in the processed geospatial result

The platform marker appearance comes from the file-scoped Player Config dialog, where you can save the platform type, model, and color for that source.

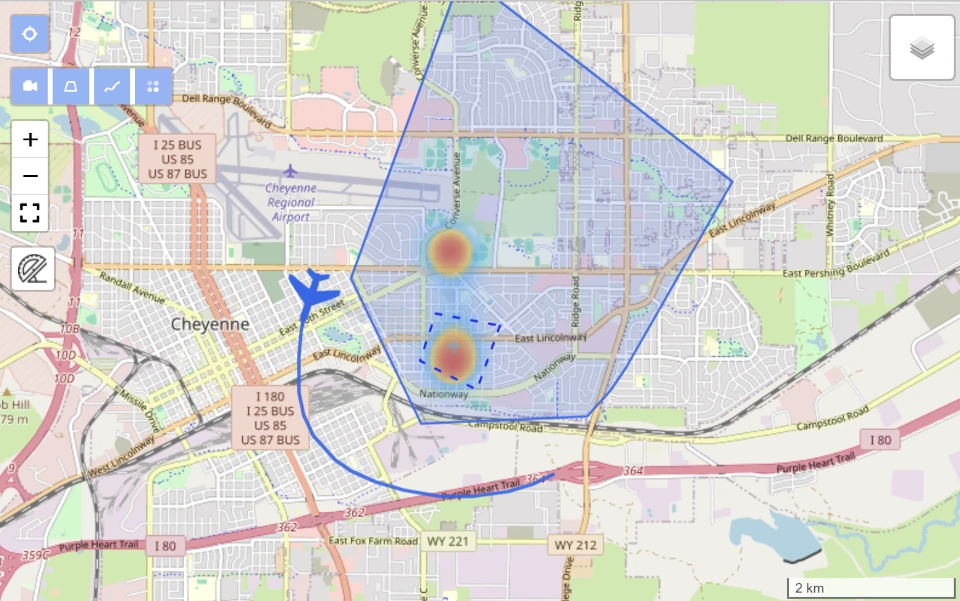

Map Window

Map Data Sources​

The map needs usable coordinates in the matched KLV packet.

For each active KLV PID, StInspector looks for platform coordinates from fields such as:

  • sensor latitude and longitude: Tags 13 and 14
  • frame-center latitude and longitude: Tags 23 and 24
  • frame-center heatmap data derived during processing, when available in the saved geospatial result

For heading, the map uses:

  • platform heading angle: Tag 5

VMTI-related geospatial information can also contribute to what you inspect on the map.

  • embedded MISB ST 0903 VMTI local set: parent ST 0601 Tag 74
  • target-related geospatial context when the processed data includes VMTI detections with usable geographic information

This means the map is not limited to only the platform marker. Depending on the processed dataset, it can also help you review where VMTI activity is concentrated and how that relates to the platform track and filmed area.

If multiple KLV PIDs are matched at the same Player position, each PID can appear as its own platform on the map.

Map Controls​

The detached map window is primarily for spatial inspection of the currently matched metadata.

Depending on the installed map control and the available metadata, the window can expose these actions:

  • normal map pan and zoom controls
  • Marker, which shows the draggable shared marker in the map window
  • platform selection when more than one matched platform is shown
  • Area, which requests the filmed-area polygon for the current ingest run and draws it on the map
  • Path, which requests the sensor path for the current ingest run and draws it on the map

When an Area or Path request is running, the map shows a spinner. If the backend does not have that geometry, StInspector keeps the window open and shows the error in the Player page.

Shared Marker Behavior​

The map window and the Player overlay can share one interactive marker position.

  • In the Player toolbar, turn on Marker to show the overlay marker on the video.
  • In the map window, use Marker to show the draggable map marker.
  • When you drag the marker in the Player overlay, the overlay becomes the current master. The map marker follows that new position.
  • When you drag the marker in the map window, the map becomes the current master. The overlay marker follows that new position.

In practice, the last surface you move becomes the active source for the shared marker position.

The shared marker uses geographic coordinates. This means the map can keep the marker anchored to the same latitude and longitude while the overlay reprojects it into the current frame when the packet georeferencing allows that projection.

If the current packet cannot resolve the marker into the frame, the map marker can still keep its geographic position, but the overlay may not be able to draw it until usable georeferencing is available again.

When The Map Is Unavailable​

The Map button can still be opened from Player, but a platform is shown only when the current matched KLV includes usable coordinates.

If position fields are missing:

  • no platform is plotted for that matched packet
  • heading cannot be drawn
  • area and path overlays are not meaningful until a platform can be identified

For raw binary KLV sessions without video, the map still works as long as the packet timeline includes usable coordinates.

For playback behavior, see Player. For on-frame orientation and VMTI drawing, see Overlay. For decoded and raw metadata inspection, see KLV Presentation.
