Telemetry Configuration Page

You can configure some advaned Telemetry Ingestion parameters at the time of mission creation.

Note

These parameters must be set before uploading the ts or bin telemetry file.

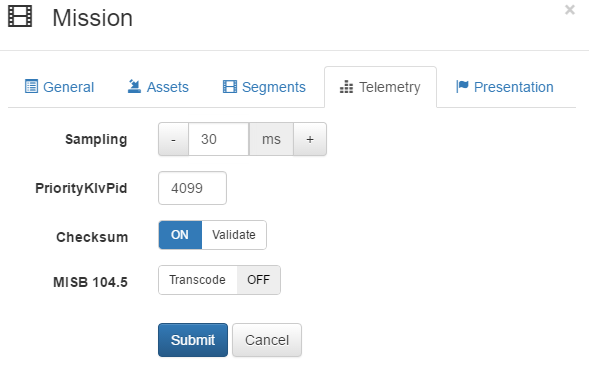

Telemetry parameters configuration

• Sampling rate configuration. Defines telemetry sampling rate. The metadata is sampled during ingestion phase. Minimum rate is 30 Hz. Remember, the lower this value is, the more data is stored in the DB. It will increase the accuracy of the queries, but on the other hand, will use more space and increase the processing time of most of the queries. If you need smooth animations, keep this value as low as possible.

• PriorityKlvPid. If set, specifies the Klv Pid that will be ingested (if present). Use this setting if you have a file with multiple metadata streams and want to select a specific one.

• Checksum. In general, it should always be switched on. Remember, if you switch it off and the file has some errors, this may cause a crash of the ingestion process.

• MISB 104.5 transcoding. Switching this on will attempt to transcode a legacy MISB 104.5 stream into MISB 0601.X.
