Encoding RAW video frames

KlvInjector provides RAW video frame encoding functionality.

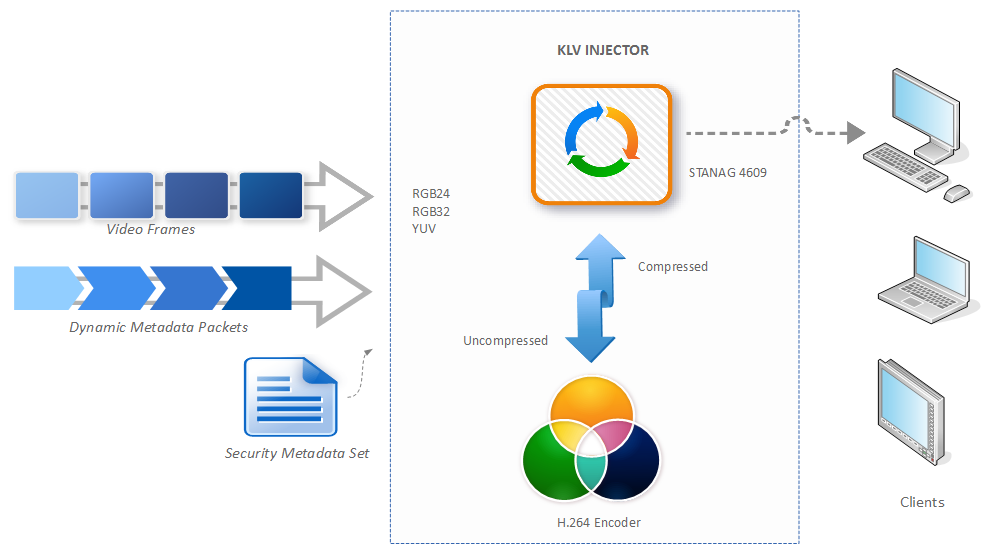

Working with RAW video buffers.

KlvInjector SDK accepts RAW video in the following formats:
- RGB24
- RGB32
- YUV

Video frame can be passed as Bitmap or video data buffer.

More on video encoder

Creating STANAG Video Stream from images and metadata:

This code snippet demonstrates how to create a simple application based on Klv Injector SDK that encodes STANAG 4609 video with MISB telemetry out of the dynamically generated images.

Let's create a VS project, add the references and make sure all the required dependencies are copied to the target directory.

Next, we create an instance of the KlvInjector, initialize it and add events:

CKlvInjector m_KlvInjector = new CKlvInjector();

// Setup events
m_KlvInjector.PlayerEvent += new NotifyPlayerEvent(OnPlayerEvent);
m_KlvInjector.ErrorEvent += new NotifyError(OnErrorEvent);

There are some additional parameters that may be configured:

// Setup video / audio rendering
// Set to true if you want to decode and show the video
m_KlvInjector.RenderVideo = true;
m_KlvInjector.RenderAudio = false;

// Set Window handle to render video to. If set to 0, a default window will be created internally.
m_KlvInjector.Hwnd = 0;

// Configure KlvInsertion mode - SYNC or ASYNC
m_klvProps = new KlvDataPropsWr(ProcessingModeWr.INSERT_KLV_SYNC);

Next, we'll configure the output. In this demo we'll have both network and file targets, so the resulted STANAG stream will be simultaneously recorded to file and sent to the network.

// Network stream target
m_KlvInjector.NetTarget.Url = m_targetUrl;
m_KlvInjector.NetTarget.Use = true;

// File target
m_KlvInjector.FileTarget.Dir = Path.GetDirectoryName(m_targetFile);
m_KlvInjector.FileTarget.Name = Path.GetFileName(m_targetFile);
m_KlvInjector.FileTarget.SegmentationType = FileSegmentationType.SegmentationType_None;
m_KlvInjector.FileTarget.Use = true;

There are some additional parameters that can be configured but for the sake of simplicity we'll first go with defaults.

As we need to encode video, lets set the related parameters:

var rawVideoFrameProps = new RawVideoFramePropsWr();
rawVideoFrameProps.Height = 1920;
rawVideoFrameProps.Width = 1080;
rawVideoFrameProps.RawVideoFrameType = VideoFrameType.RGB24;
rawVideoFrameProps.EncodingParams.BitRate = 1024 * 1000;  // Target video bitrate in kb/s
rawVideoFrameProps.EncodingParams.Width = -1;             // use source Width
rawVideoFrameProps.EncodingParams.Height = -1;            // use source Height

int m_VideoPid = 0X1F0;

Next, configure Klv part:

var m_klvProps = new KlvDataPropsWr(ProcessingModeWr.INSERT_KLV_SYNC);  // We'll be using **Sync klv** that allows frame accurate synchronization of video and Klv telemetry
int m_KlvPid = 0X1F1;

Now, we just need to init and start the Injector and pump video frames accompanied with the Klv data:

// Initialize injector
m_KlvInjector.Init();
// Start Processing
m_KlvInjector.Start();

// Add video and Klv Pids
m_KlvInjector.AddVideoPidToOutput(m_VideoPid, rawVideoFrameProps);
m_KlvInjector.AddKlvPidToOutput(m_KlvPid, m_klvProps);

The Injector is running now. We just need to send the image and the Klv metadata at the desired frame rate (like 30 fps).

m_KlvInjector.WritePacketToOutputPid(m_VideoPid, frameBmp, timestamp);
m_KlvInjector.WritePacketToOutputPid(m_KlvPid, pcktBuf, timestamp);
  • frameBmp - bitmap. The bitmap can be created dynamically, as in the sample app or taken from the stream/file, after some pre-processing.
  • timestamp - timestamp for video and SYNC KLV. Reference clock (100-nanosecond).
  • pcktBuf - RAW Klv buffer.

For the complete sample source code please see \ref ProgramEnc.cs

Now, let's look at the results...

See more info on Stream validation
