This is an example of KlvInjectorBatch usage for a CSV formated data insertion into MPEG-PS file. It demonstrates how to combine a MPEG-PS file (with or without audio) and a Telemetry packets coming a csv file. During the processing, KlvInjectorBatch extracts the elementary video and audio streams from the MPEG-PS container and multiplexes them together with the correstponding data coming from the csv file. The KLV information is added as a Klv Data PID to the transport multiplex and a result is saved into the file as a compliant STANAG 4609 file.

Create a new Job:

Figure 1. Creating New Job item.

Set Job parameters like name and description.

Figure 2. Creating New Job item.

Add new Task:

Figure 3. Adding New File Injection Task item.

Configure Video and Data file sources:

Figure 4. Configuring task name and description.

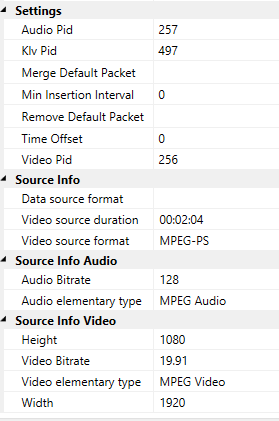

When you enter a valid file name, its video and audio paramters will be detected automatically, as shown below.

Figure 5. Task settings.

Make sure Execute Task is selected in you want it to be included into the batch processing.

Figure 5. Enable task execution.

You can also enable a video preview during processing.

Note: If you enabled a video preview, the task will be executed in video's "real time", slowing down the processing significantly.

Close the configuration window and start processing.

Figure 6. Start batch processing.
