KlvInjector application can be configured to obtain elevation data from the elevation server.

Note: Elevation server is not part of the application and not guaranteed to work!

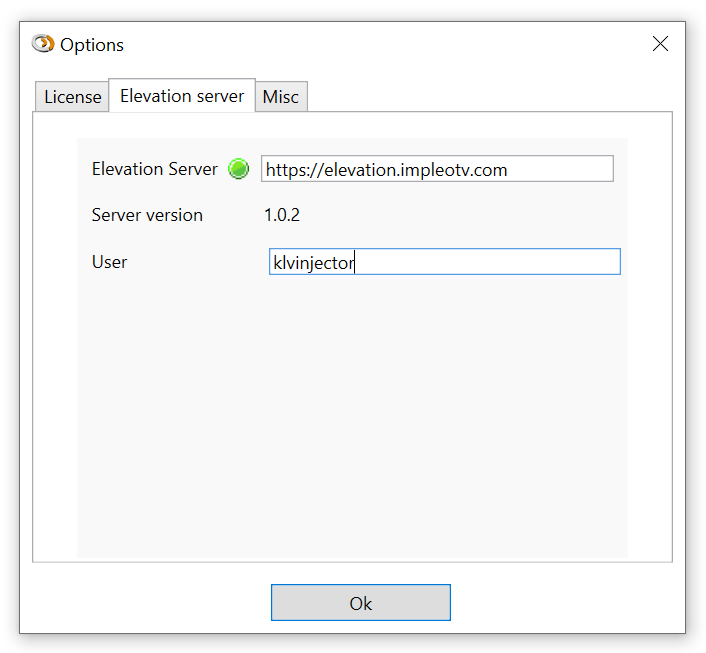

Elevation Server configuration.

Elevation Server Configuration

Custom Server query format.

You can use your own elevation server. Here is the required query format:

Version GET http://{{host}}/version

One elevation point in the request line GET http://{{host}}/lookup?locations=31.625905886872008,35.43022155761719

One elevation point in the request line (Italy) GET http://{{host}}/lookup?locations=42.05501945599,12.62637364469

Many elevation points in the request line GET http://{{host}}/lookup?locations=31.625905886872008,35.43022155761719|32.155244, 34.834754|32.154018926947, 34.83357770058|32.1540189160346, 34.8335777219525

Post request. Many elevation points POST http://{{host}}/lookup content-type: application/json

[
    [31.625905886872008, 35.43022155761719],
    [32.155244, 34.834754],
    [32.154018926947, 34.83357770058],
    [32.1540189160346, 34.8335777219525],
    [32.154018905525, 34.8335777440815],
    [32.1540189100741, 34.8335777484719],
    [32.1540189730176, 34.8335776906102],
    [32.1540189812594, 34.8335776876744],
    [32.1540189890701, 34.8335776882259],
    [32.1540189943187, 34.8335777355525],
    [32.1540189997726, 34.8335777871872],
    [32.1540190454968, 34.8335778031258],
    [32.1540190479047, 34.8335778210466],
    [32.1540189957762, 34.8335778235333],
    [32.154018944646, 34.8335778253181],
    [32.1540188522314, 34.8335777475624],
    [32.1540188345725, 34.8335777450099],
    [32.1540188323428, 34.8335777425662],
    [32.1540188303447, 34.8335777405968],
    [33.47727218776036, 34.749755859375]

]
